LSPEC 5060 Research FTIR Gas Analyzer
TheLspec5060isaresearch-gradeFTIRgasanalyzerforreal-time,high-precisionmulti-gasanalysis,withsensiti
Key Advantages
Why Choose This Product？
The Lspec 5060 is a research-grade FTIR gas analyzer designed for real-time, continuous gas composition analysis. It enables fast and accurate identification and quantification of multiple gases, with some detection limits reaching ppb level.Widely used in industrial analysis, emission monitoring, and scientific research, it provides reliable performance for complex gas analysis applications.
1. ppb-level high sensitivity for trace gas detection
2. Continuous and automated gas analysis
3. Wide detection capability (CWA, TIC, industrial gases)
4. High precision and stability
5. Suitable for laboratory and advanced industrial use
Pain Points
Traditional analyzers lack sensitivity for trace gases
Difficulty in continuous and multi-gas analysis
Limited gas identification capability
Complex operation in research environments
Our Solution
The Lspec 5060 provides a high-performance FTIR-based solution for real-time and continuous gas analysis. With high sensitivity, wide gas library, and advanced optical design, it ensures accurate and reliable results for research, industrial monitoring, and complex gas analysis applications.
Product Parameter
| Item | Specification |
| Customized support | OEM, ODM, OBM, Software reengineering |
| Place of Origin | China |
| Henan | |
| Power | Electronic |
| Brand Name | RESOUND |
| Model Number | LSPEC 5060 |
| Spectral Range | 750–4500 cm⁻¹ |
| Resolution | 1 cm⁻¹, 2 cm⁻¹, 4 cm⁻¹ (optional up to 0.5 cm⁻¹) |
| Detector | Liquid nitrogen cooled MCT (optional thermoelectric cooling) |
| Interferometer | Cube corner interferometer, permanently aligned |

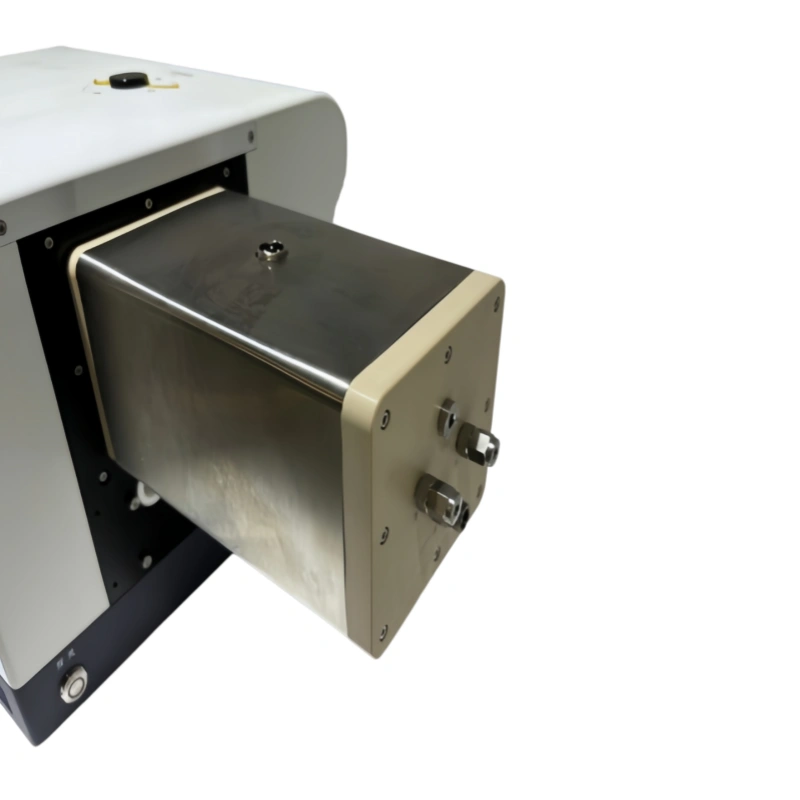

| Gas Cell | 5 m long-path gas cell (temperature controllable) |
| Beam Splitter | ZnSe |
| Interface | USB |
| Gas Library | Supports 300+ gases |
| Typical Gases | CNCl, HCl, CO, CO₂, SO₂, NOx, H₂O, NH₃, etc. |
| Power Supply | 220V, 50Hz |
| Weight | 25 kg |
| Dimensions | 630 × 350 × 270 mm |
| Functions | Automatic temperature, pressure, and gas compensation |
Application Areas
1. Industrial process gas analysis
2. Emission and flue gas monitoring
3. Catalytic process research
4. Gas impurity detection
5. Scientific research and laboratories
6. Biomass and environmental gas analysis
