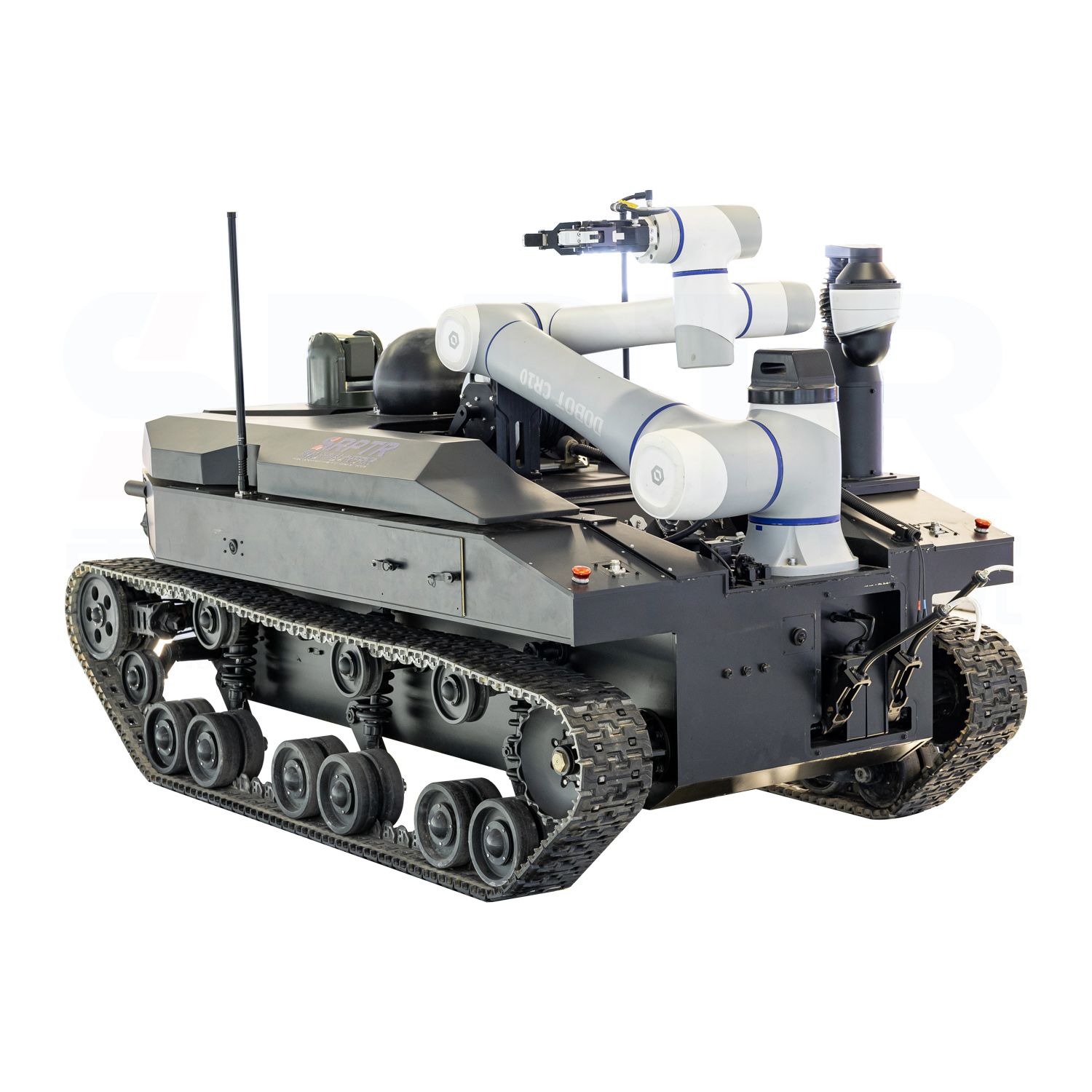

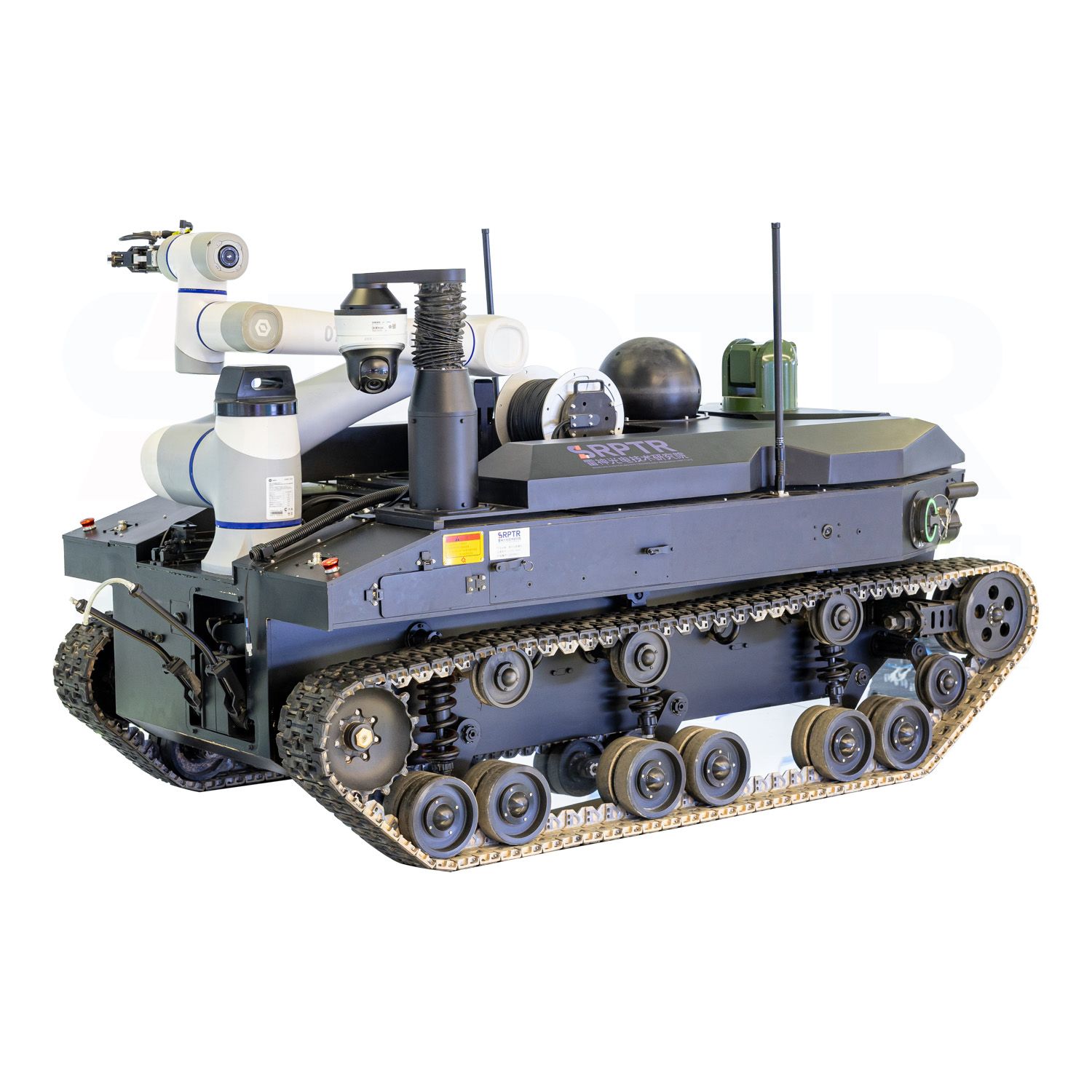

Industrial Grade Lspec 9200 Intelligent Inspection Robot
Product DescriptionitemvalueCustomized supportODMPlace of OriginChinaHenanWarranty1 YearPowerElectronicBrand NameResoundModel NumberLSPEC 9200Length, width and height≤1850mm×1000mm×1000mmWeight≤340kgLoad Capacity≥200kgGas detectionarin, Viex, mustard gas Lewy gas Hydrocyanic acid cyanogen chloride ammonia chlorineRobot motion performance1. Maximum driving speed ≥20km/h 2. Maximum climbing slope ≥38° 3. Maximum wading depth ≥300mm 4. Maximum obstacle height ≥300mm 5. Maximum trench width ≥650mm 6. Maximum inclination ≥25°Wireless transmission distance≥3km(through sight) wired transmission ≥1.5kmSampling equipment1 Gas: 3 1L volume air bags 2. Liquid: 3 liquid bags with volume of 200mL 3. Solid: 3 solid samplers with samples of 300gDecontamination parametersVolume: 100L, area ≥50 square metersGamma RaysMeasurement range: 0.1 Gy/h~10Gy/hWorking parameters1. Working temperature: -40ºC~+50ºC 2. storage temperature: -40ºC~+60ºC 3. Maximum relative humidity: 95%RH(+30ºC) 4. Maximum adaptive altitude: ≥4500m
Product Description
item | value |
Customized support | ODM |
Place of Origin | China |
Henan | |
Warranty | 1 Year |
Power | Electronic |
Brand Name | Resound |
Model Number | LSPEC 9200 |
Length, width and height | ≤1850mm×1000mm×1000mm |
Weight | ≤340kg |
Load Capacity | ≥200kg |
Gas detection | arin, Viex, mustard gas Lewy gas Hydrocyanic acid cyanogen chloride ammonia chlorine |
Robot motion performance | 1. Maximum driving speed ≥20km/h 2. Maximum climbing slope ≥38° 3. Maximum wading depth ≥300mm 4. Maximum obstacle height ≥300mm 5. Maximum trench width ≥650mm 6. Maximum inclination ≥25° |
Wireless transmission distance | ≥3km(through sight) wired transmission ≥1.5km |
Sampling equipment | 1 Gas: 3 1L volume air bags 2. Liquid: 3 liquid bags with volume of 200mL 3. Solid: 3 solid samplers with samples of 300g |
Decontamination parameters | Volume: 100L, area ≥50 square meters |
Gamma Rays | Measurement range: 0.1 Gy/h~10Gy/h |
Working parameters | 1. Working temperature: -40ºC~+50ºC 2. storage temperature: -40ºC~+60ºC 3. Maximum relative humidity: 95%RH(+30ºC) 4. Maximum adaptive altitude: ≥4500m |
