LSPEC SR550 Research-Grade Raman Spectrometer
ProductIntroductionTheSR550seriesexcelsinexpandability.ItsmodulardesignsupportsOEMcustomizationandse
Product Introduction
The SR550 series excels in expandability. Its modular design supports OEM customization and secondary development, allowing for deep integration of hardware and software to suit specific user applications—such as online monitoring, process control, or adaptation to special samples. Whether building a customized testing system or integrating it into an automated analysis platform, the SR550 offers flexible technical interfaces and development support.
In terms of application adaptability, this series of instruments is flexibly configurable, offering a variety of optional fiber optic probes, microscope accessories, sample holders, and sample cells with different optical paths to match diverse testing needs from macroscopic to microscopic areas. Whether for basic scientific research in the laboratory or rapid in-situ screening, the SR550 achieves ideal testing results thanks to its configurability.
Product Features
1.Equipped with 532 nm excitation wavelength, adaptable spectral range of 150–4000 cm⁻¹, and high resolution up to 3 cm⁻¹ @ 614 nm;
2.High sensitivity for detecting weak Raman signals, with a fiber-coupled system and flexible probe for multi-position measurements;

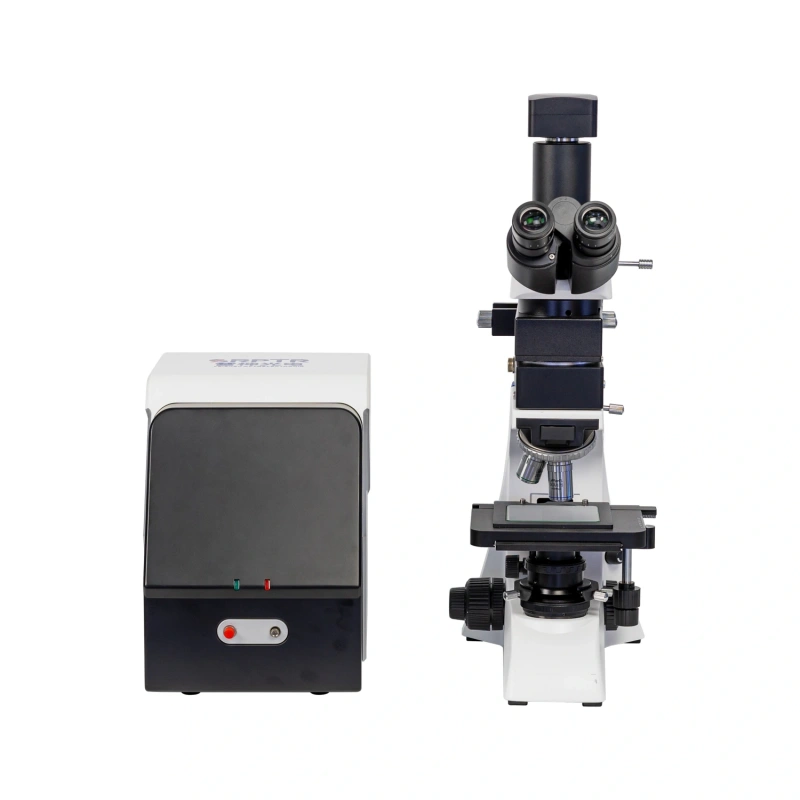

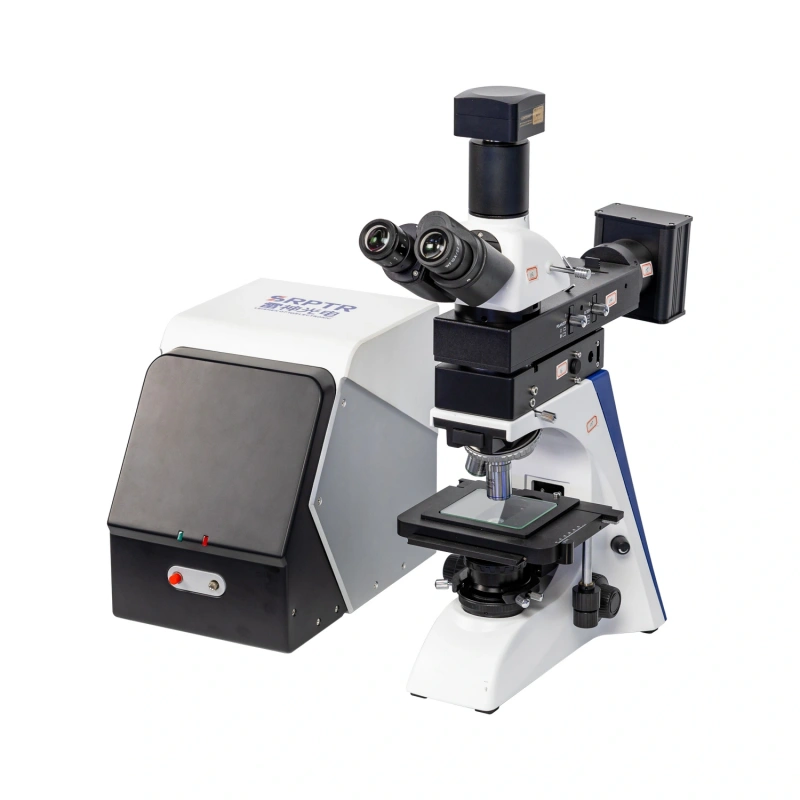

3.Optional microscope for precise Raman positioning analysis, plus optional microscopic imaging and motorized stage mapping function;
4.Compatible with self-developed multi-specification enhancement reagents for different structural material analysis;
5.Customizable configurations to meet specific customer testing needs.
Product Parameters
| Item | Main Technical Parameters |
| Excitation Wavelength | 532 nm |
| Detector Options | Uncooled linear CMOS array, TE-cooled CCD array/area CCD array/slim back-illuminated CCD array (different cooling temperatures) |
| Spectral Range | 150-4000 cm⁻¹ (max, varies by detector) |
| Resolution | Up to 3-4.5 cm⁻¹ @ 614 nm (high-end configuration) |
| Laser Performance | 100 mW power (0–100% continuously adjustable), lifetime >5000 hours |
| Data Interface | Optional USB, WiFi, built-in VGA, etc. |
| Accessory Options | Microscope (5X/10X/20X/50X objectives), microscopic imaging/motorized stage mapping |
| Physical & Environmental | Weight: 9 kg; Storage Temperature: 10°C-60°C |
Application Areas
Widely used in raw material screening, on-site inspection, graphene synthesis monitoring, biomedical applications, in vitro diagnostics, and material identification and analysis.
