T10 low-a lt itude survei llance radar
ProductFeatures1.Wide-AreaSurveillanceProvidesfull360°monitoringwithupto10kmdetectionrange,ensuringc
Product Features
1. Wide-Area Surveillance
Provides full 360° monitoring with up to 10 km detection range, ensuring comprehensive low-altitude situational awareness.
2. Fast Target Tracking
Supports refresh rates as fast as 1 second and tracks targets moving up to 150 m/s for effective monitoring of maneuvering drones and aircraft.
3. High Detection Accuracy
Offers range accuracy ≤5 m and angle accuracy ≤0.4° RMS for precise target localization.
4. Multi-Target Capability
Simultaneously tracks over 200 targets, ideal for dense airspace environments.
5. Portable Deployment
Lightweight modular structure allows rapid transportation, setup, and operation in field missions.
6. Reliable All-Weather Operation
Operates in temperatures from -40°C to +55°C with strong resistance to electromagnetic interference and adverse weather conditions.
Product Specifications
| Parameter | Specification |
| Frequency Band | X-Band |
| Detection Range | 10 km |
| Azimuth Coverage | 360° |
| Elevation Coverage | -5° to 40° |
| Detection Height | 1000 m |
| Blind Spot | 50 m |
| Small UAV Detection | ≥5 km (RCS 0.01㎡) |
| Fixed-Wing UAV Detection | ≥10 km (RCS 1㎡) |
| Personnel Detection | ≥8 km |
| Vehicle/Helicopter Detection | ≥10 km |
| Range Accuracy | ≤5 m RMS |
| Azimuth Accuracy | ≤0.4° RMS |
| Elevation Accuracy | ≤0.4° RMS |
| Max Tracked Targets | ≥200 |
| Target Speed | 1–150 m/s |
| Refresh Rate | 1s / 2s / 3s |
| Communication | Gigabit Ethernet |
| Power Consumption | ≤260 W |
| Power Supply | DC36–52V |
| Operating Temperature | -40°C to +55°C |
| Humidity | ≤90% |
| Protection Rating | IP66 (Host IP67) |
Application Areas
Counter-UAV and drone detection systems
Airport bird strike prevention and monitoring
Border and coastal surveillance
Critical infrastructure protection
Military battlefield reconnaissance

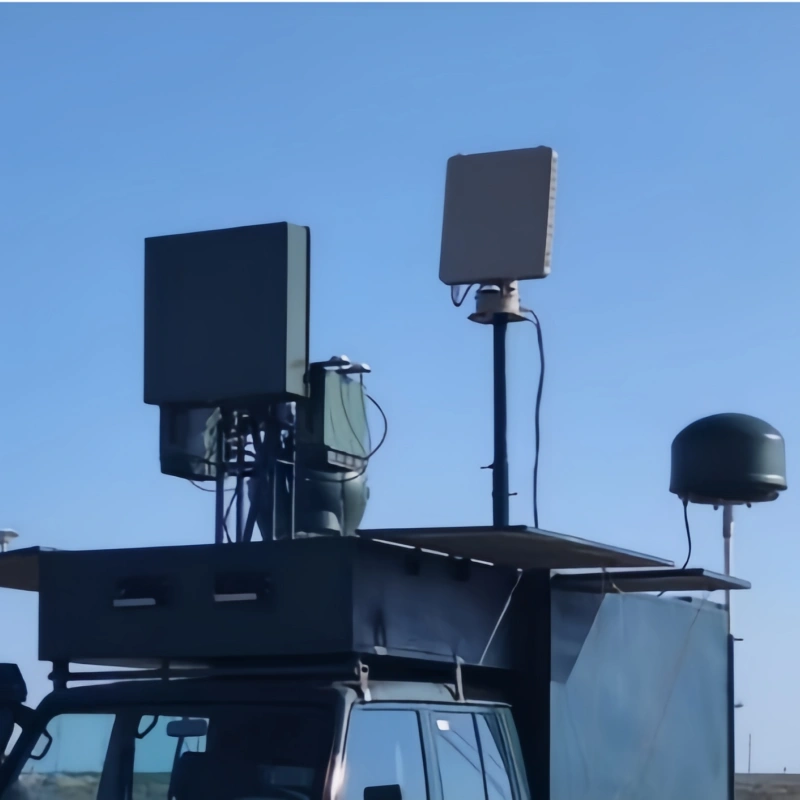

Vehicle-mounted anti-drone systems
Smart city low-altitude security monitoring
Unattended perimeter surveillance
Airspace management and situational awareness platforms
