T30 type low -altitude surveillance radar
ProductFeatures1.Ultra-LongDetectionRangeProvidesupto30kmsurveillancecapabilityforhelicoptersandvehi
Product Features
1. Ultra-Long Detection Range
Provides up to 30 km surveillance capability for helicopters and vehicles, enabling early warning and large-area monitoring.
2. Massive Multi-Target Tracking
Tracks over 500 targets simultaneously, making it ideal for high-density airspace and complex security scenarios.
3. True 3D Target Detection
Measures target range, speed, azimuth, and altitude in real time for precise situational awareness.
4. Superior Anti-Clutter Performance
Maintains reliable target tracking even in urban environments, ground clutter, and adverse weather conditions.
5. High-Speed Refresh & Tracking
Supports up to 360°/s scanning speed upgrade, enabling rapid response to highly maneuverable UAVs.
6. Easy System Integration

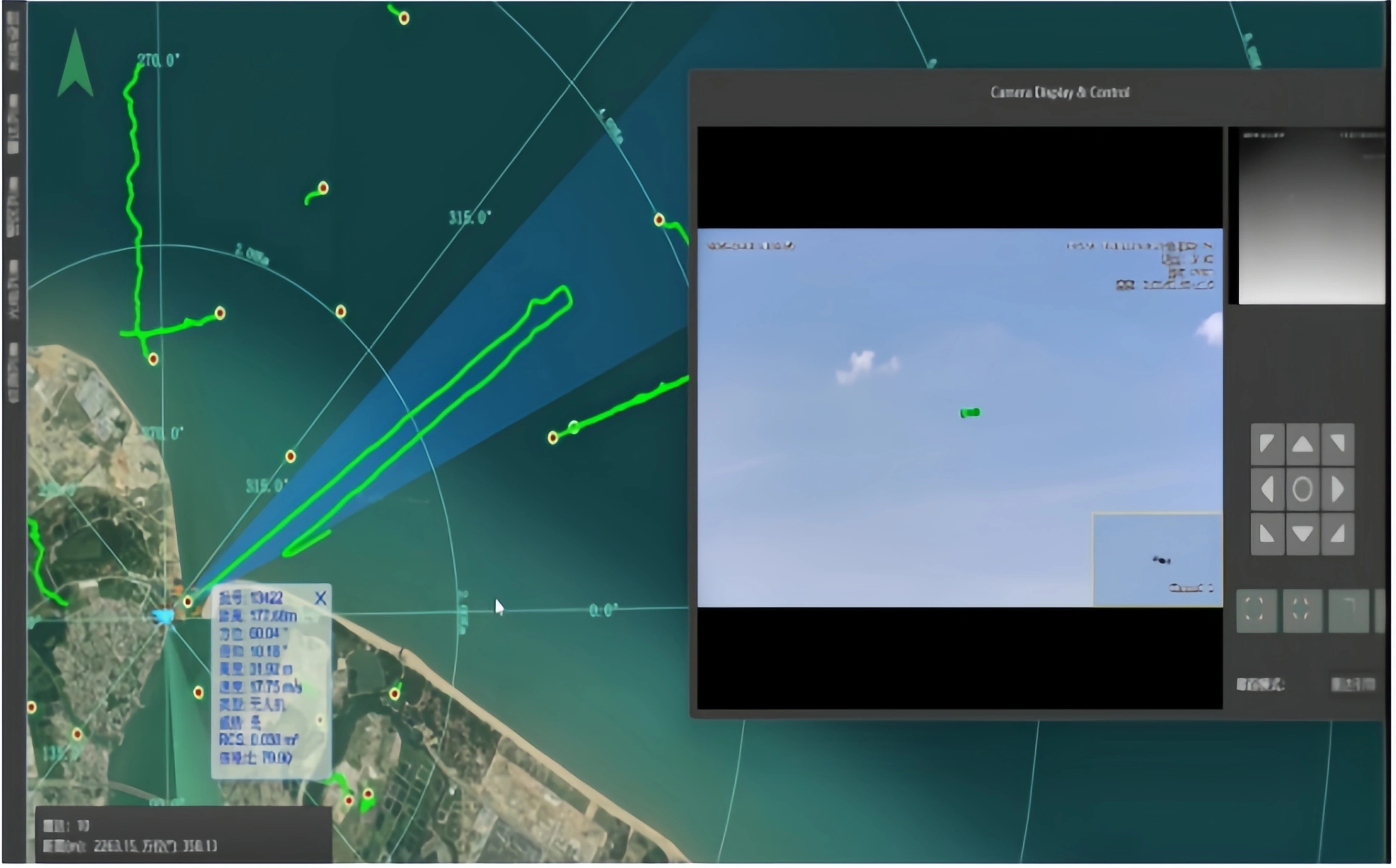

Functions as a core sensing platform for EO/IR cameras, bird deterrent systems, command centers, and counter-UAV solutions.
Product Specifications
| Parameter | Specification |
| Radar Type | 3D Low-Altitude Surveillance Radar |
| Frequency Band | X-Band |
| Detection Range | 30 km |
| Detection Altitude | 6000 m |
| Azimuth Coverage | 360° |
| Elevation Coverage | -5° to 60° |
| Blind Zone | 50 m |
| Target Speed Range | 1–150 m/s |
| Small Drone Detection | ≥10 km (RCS 0.01㎡) |
| Medium UAV Detection | ≥20 km (RCS 0.5㎡) |
| Vehicle / Helicopter Detection | ≥30 km (RCS 5㎡) |
| Range Accuracy | ≤5 m |
| Speed Accuracy | ≤0.5 m/s |
| Angular Accuracy | ≤0.3° |
| Refresh Rate | 1s / 2s / 3s |
| Simultaneous Targets | ≥500 |
| Power Supply | DC36–52V |
| Communication | Ethernet |
| Power Consumption | ≤600 W |
| Operating Temperature | -40°C to +55°C |
| Humidity | ≤90% |
| Protection Rating | IP66 (Radar), IP67 (Main Unit) |
| Weight | ≤55 kg (Main Unit + Turntable) |
Application Areas
Counter-UAV and anti-drone defense systems
Airport bird detection and bird strike prevention
Border and coastal surveillance
Critical infrastructure protection
Military security and battlefield monitoring
Air traffic management
Smart city low-altitude monitoring
Vehicle-mounted anti-drone systems
Radar + EO/IR integrated security platforms
Maritime and coastal UAV detection
